MK-IRS-E35
Handheld Thermal Monocular With Laser Indicator

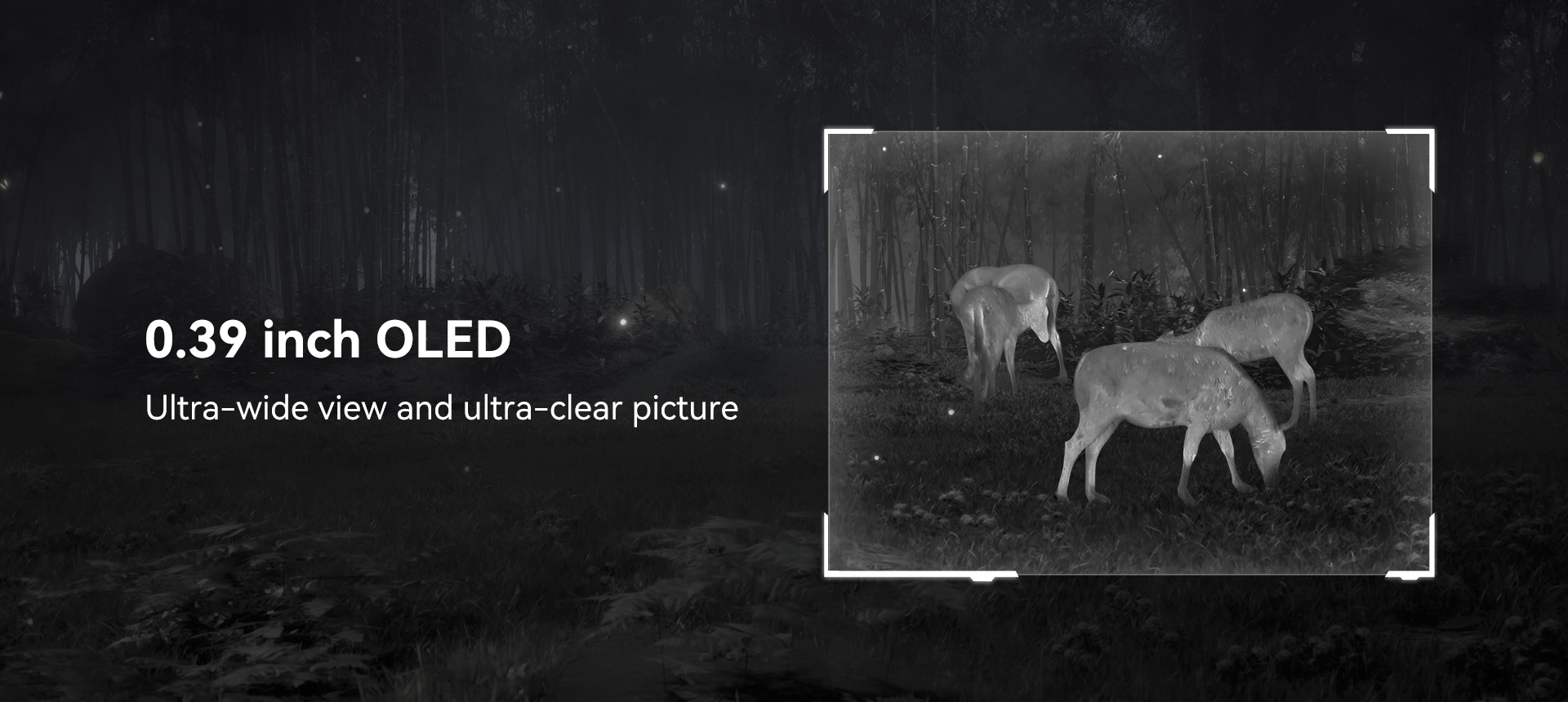

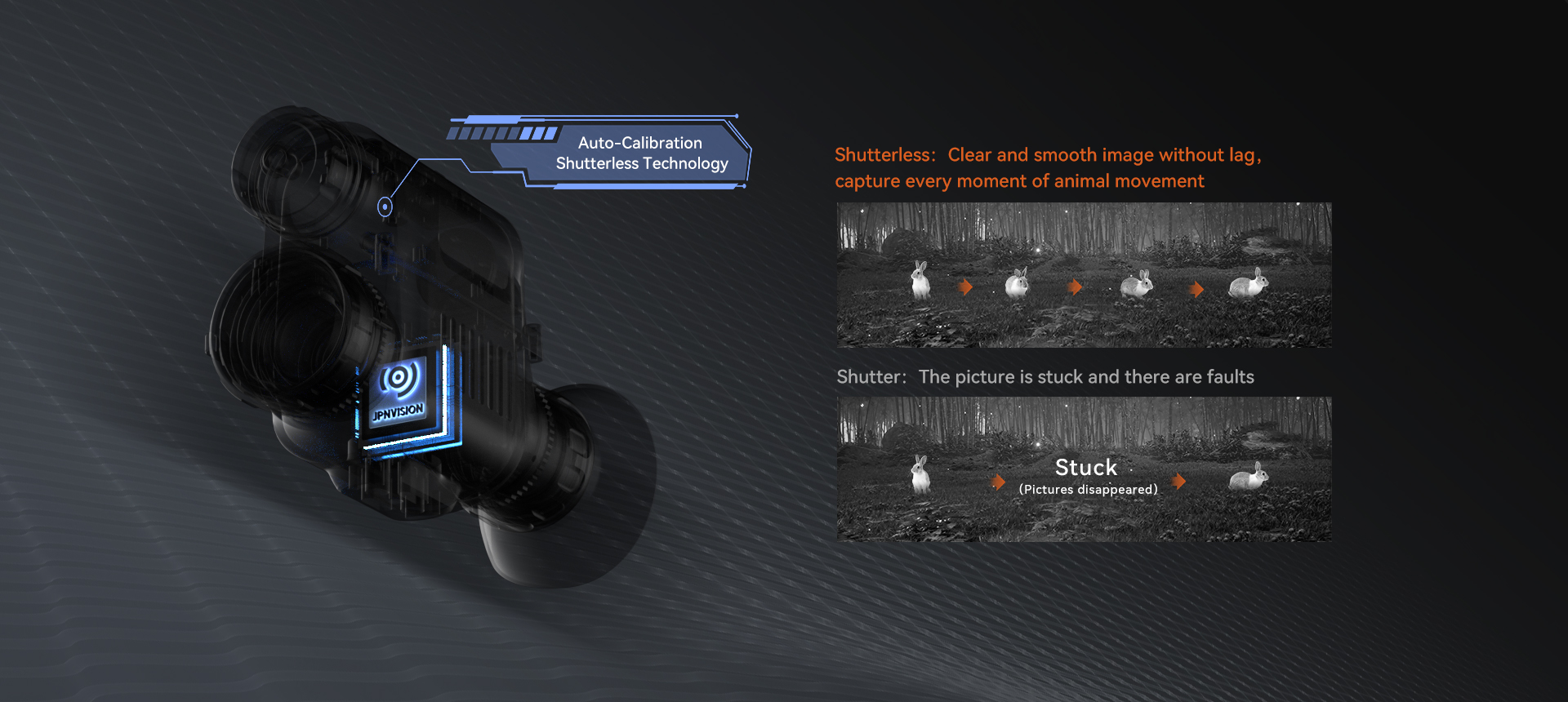

The MK-IRS series of products with laser indicator which aids in swiftly pinpointing the target within a broad field of view. Utilizing the latest generation of automatic calibration shutterless technology, ensuring that the image is always clear, smooth, and without any lag. At the same time, they utilize real-time noise reduction technology to provide a high-quality image experience. Equipped with a larger 0.39-inch OLED display, they offer an ultra-wide viewing angle and ultra-clear image quality. With an IP67 rating for dust and water resistance, they can be used in a wider range of natural environments.
Resolution 384×288
Lens 35mm

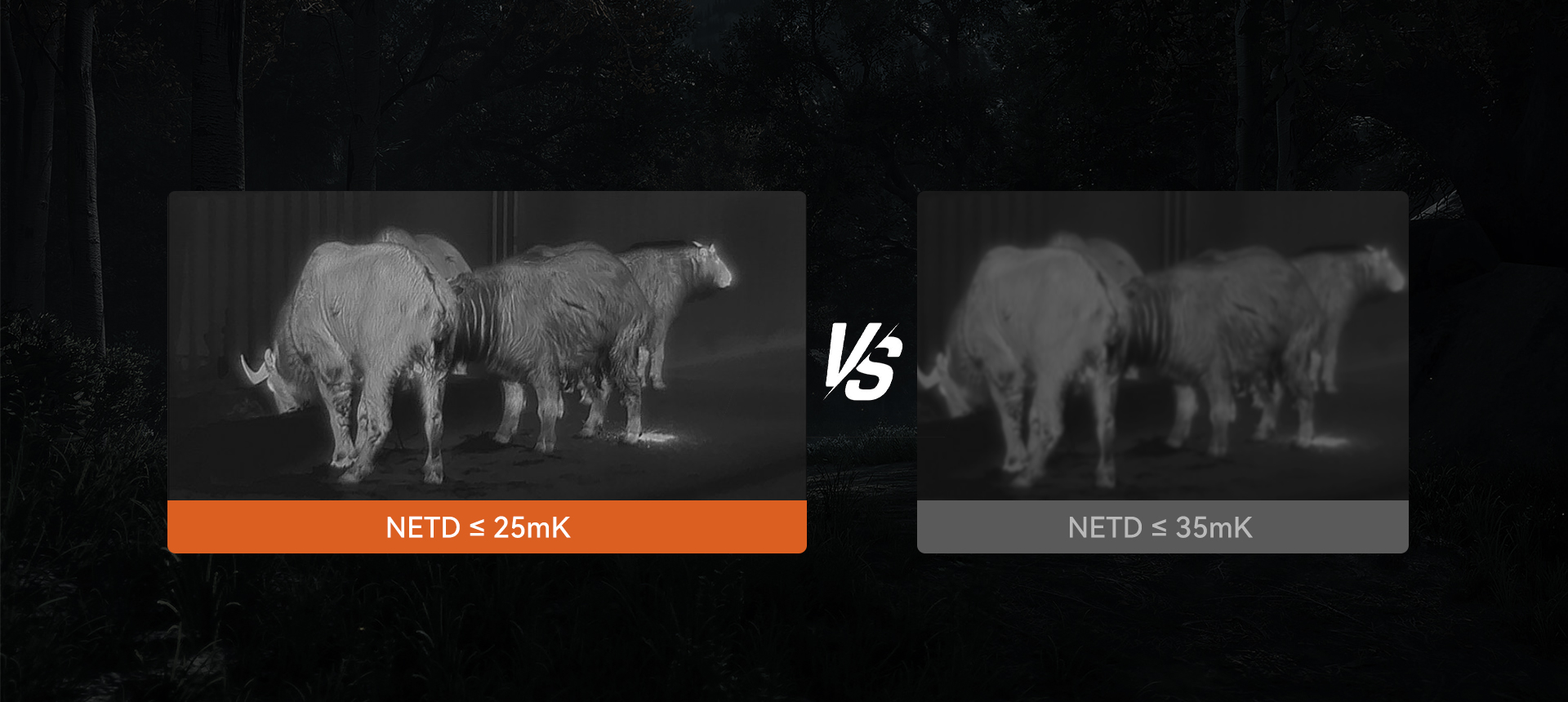

NETD ≤35mk
Application：
- Animal Observation
- Outdoor Sports
- Outdoor Rescue
Product Features
Application
Animal Observation
Outdoor Sports
Outdoor Rescue
Technical Parameters
| Model | MK-IRS-E35 |
| Detector | Uncooled VOx Microbolometer |
| Resolution, pixels | 384×288/12μm |
| Objective Lens (F1.0) | 35mm |
| Field of View | 7.5°×5.7° |
| Visual Magnification | 3.85~15.41 |
| Laser Indicator (IRS） | 650nm | Class II | Range >100m |
| Spectral Band | 8~14μm |
| Eyepiece Diopter | -5~+5 |
| Eye Relief | 20mm |
| NETD | ≤35mk@300K |
| Display | 0.39" OLED 1024x768 |
| Frame Rate.Hz | 50Hz |

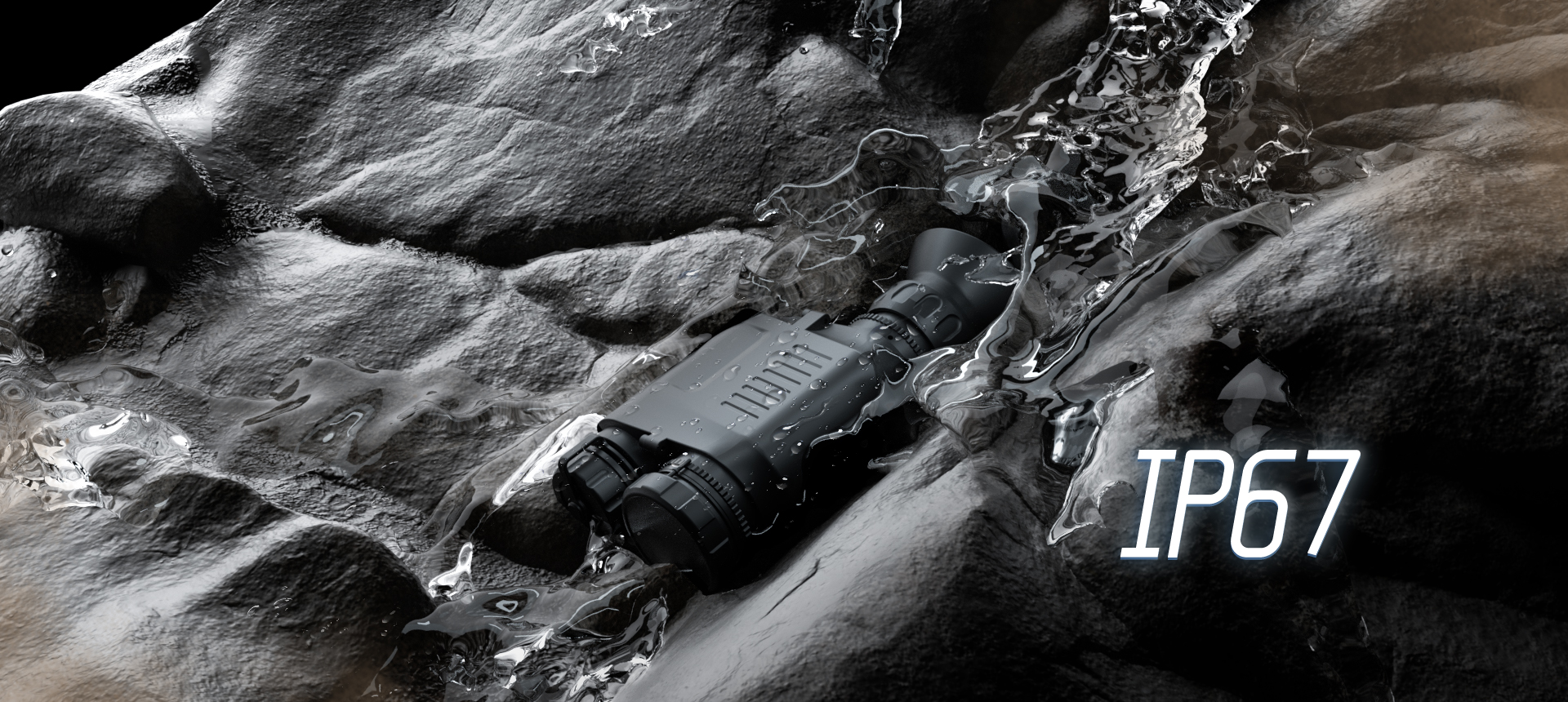

| Waterproof | IP67 |
| Power Source | 3400mAh Li-ion Battery |
| Standby Time | ≥5h |
| Digital Zoom | 1x、2x、4x |
| Interface | Type-C |
| Weight | ≤470g |
| Dimensions | 196×70×58mm |
| Operating Temperature | -20℃~+50℃ |
| Detection Range (Human) | 3310m |
| Detection Range (Animal) | 2920m |
